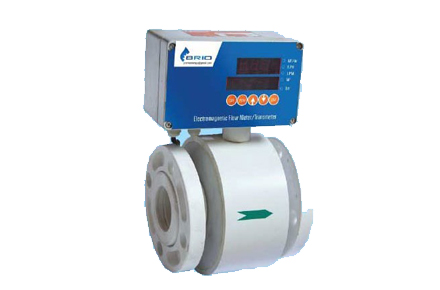

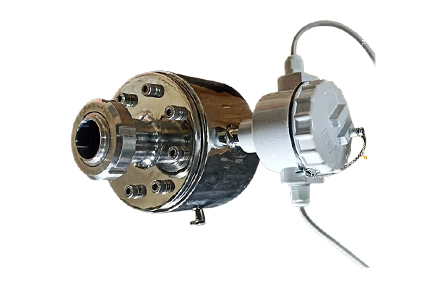

Electromagnetic Flow Meter manufacturers in Pune,India
These flow meters are used enormously to measure volumetric flow rates of electrically conductive liquids or slurries. Due to lack of moving parts these flow meters offers maintenance free function.The fact that these meters have no obstruction to flow in the form of probes or turbines ensures no pressure drops across meter. By making use of Faraday’s laws of magnetic induction, the meter can measure the EMF produced when conductive liquid flows through the meter-created magnetic field. The performance of the instruments is not affected by the properties of the fluid such as corrosiveness, viscosity and density.
Key Features:
- • Line Size Range: 10NB to 600NB
• Accuracy: +/- 0.5%
• Universal Power Supply: 90 V ac to 265 V ac
• Bi-Directional Flow Measurement
• Built-in Totalizer
• Remote Monitoring
• International manufacturing standards
• Ingress protection : IP67, Optional IP68 for sensor
Applications
Having the unique feature of not having any obstructions to flow, electromagnetic meters have been used to take advantage of this fact to handle various liquids with solid particles like sewage and milk. Here are a few applications:
- • Sewage treatment plants
• Sugar Syrup
• Coal Slurry
• Hard water
• Beverages
• Alkalis and acids
• Chemical solution
